BYV10-600P - Ultrafast power diode

Datasheet Summary

Description

Ultrafast power diode in a SOD59 (2-lead TO-220AC) plastic package.

2.

Features

  • Fast switching.
  • Low leakage current.
  • Low forward voltage drop.
  • Low thermal resistance.
  • Soft recovery characteristic 3.

📥 Download Datasheet

Datasheet preview – BYV10-600P

Datasheet Details

Part number BYV10-600P
Manufacturer NXP
File Size 171.65 KB
Description Ultrafast power diode
Datasheet download datasheet BYV10-600P Datasheet
Additional preview pages of the BYV10-600P datasheet.

📁 Similar Datasheet

Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

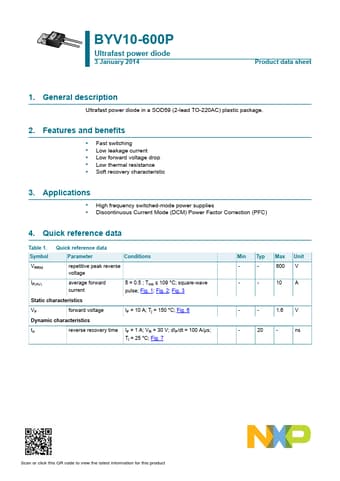

TO-220AC BYV10-600P Ultrafast power diode 3 January 2014 Product data sheet 1. General description Ultrafast power diode in a SOD59 (2-lead TO-220AC) plastic package. 2. Features and benefits • Fast switching • Low leakage current • Low forward voltage drop • Low thermal resistance • Soft recovery characteristic 3. Applications • High frequency switched-mode power supplies • Discontinuous Current Mode (DCM) Power Factor Correction (PFC) 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VRRM repetitive peak reverse voltage IF(AV) average forward current δ = 0.5 ; Tmb ≤ 109 °C; square-wave pulse; Fig. 1; Fig. 2; Fig. 3 Static characteristics VF forward voltage IF = 10 A; Tj = 150 °C; Fig.
