BYV10EX-600P - Ultrafast power diodes

Datasheet Summary

Description

Ultrafast power diode in a SOD113 (2-lead TO-220F) plastic package.

2.

Features

  • Fast switching.
  • Isolated plastic package.
  • Low leakage current.
  • Low forward voltage drop.
  • Low thermal resistance.
  • Soft recovery characteristic.
  • Enhanced avalanche energy capability 3.

📥 Download Datasheet

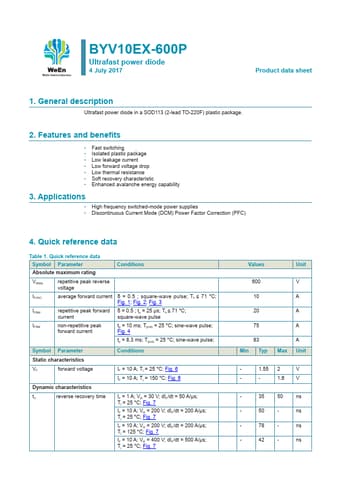

Datasheet preview – BYV10EX-600P

Datasheet Details

Part number BYV10EX-600P
Manufacturer WeEn
File Size 237.04 KB
Description Ultrafast power diodes
Datasheet download datasheet BYV10EX-600P Datasheet
Additional preview pages of the BYV10EX-600P datasheet.

📁 Similar Datasheet

  • BYV10ED-600P - Ultrafast power diode (NXP)
  • BYV10-20 - Schottky barrier diodes (NXP)
  • BYV10-30 - Schottky barrier diodes (NXP)
  • BYV10-40 - SMALL SIGNAL SCHOTTKY DIODES (STMicroelectronics)
  • BYV10-40 - Schottky barrier diodes (NXP)
  • BYV10-60 - SMALL SIGNAL SCHOTTKY DIODE (STMicroelectronics)
  • BYV10-600P - Ultrafast power diode (NXP)
  • BYV10X-600P - Ultrafast power diode (NXP)
  • BYV1100 - Fast soft-recovery rectifier (NXP)
  • BYV116 - Rectifier diodes Schottky barrier (NXP)
Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text
BYV10EX-600P Ultrafast power diode 4 July 2017 Product data sheet 1. General description Ultrafast power diode in a SOD113 (2-lead TO-220F) plastic package. 2. Features and benefits • Fast switching • Isolated plastic package • Low leakage current • Low forward voltage drop • Low thermal resistance • Soft recovery characteristic • Enhanced avalanche energy capability 3. Applications • • High frequency switched-mode power supplies Discontinuous Current Mode (DCM) Power Factor Correction (PFC) 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating Conditions VRRM IF(AV) IFRM IFSM repetitive peak reverse voltage average forward current repetitive peak forward current non-repetitive peak forward current δ = 0.
