BYV10M-600P - Ultrafast power diode

Datasheet Summary

Description

Ultrafast power diode in a 2-lead TO220 plastic package.

2.

Features

  • Low forward voltage drop.
  • Low leakage current.
  • Soft reverse recovery characteristics.
  • High thermal cycling performance.
  • Package meets UL94V0 which guaranteed by Epoxy Mold Compound 3.

📥 Download Datasheet

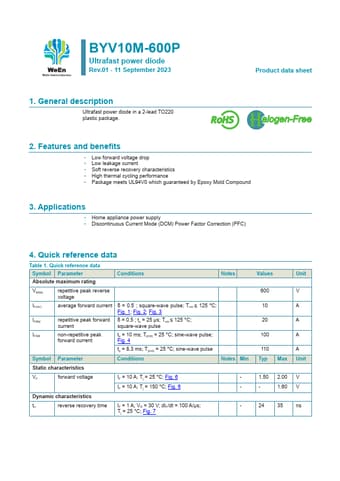

Datasheet preview – BYV10M-600P

Datasheet Details

Part number BYV10M-600P
Manufacturer WeEn
File Size 414.37 KB
Description Ultrafast power diode
Datasheet download datasheet BYV10M-600P Datasheet
Additional preview pages of the BYV10M-600P datasheet.

📁 Similar Datasheet

  • BYV10-20 - Schottky barrier diodes (NXP)
  • BYV10-30 - Schottky barrier diodes (NXP)
  • BYV10-40 - SMALL SIGNAL SCHOTTKY DIODES (STMicroelectronics)
  • BYV10-40 - Schottky barrier diodes (NXP)
  • BYV10-60 - SMALL SIGNAL SCHOTTKY DIODE (STMicroelectronics)
  • BYV10-600P - Ultrafast power diode (NXP)
  • BYV10ED-600P - Ultrafast power diode (NXP)
  • BYV10X-600P - Ultrafast power diode (NXP)
  • BYV1100 - Fast soft-recovery rectifier (NXP)
  • BYV116 - Rectifier diodes Schottky barrier (NXP)
Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text
BYV10M-600P Ultrafast power diode Rev.01 - 11 September 2023 Product data sheet 1. General description Ultrafast power diode in a 2-lead TO220 plastic package. h RoHS alogen-Free 2. Features and benefits • Low forward voltage drop • Low leakage current • Soft reverse recovery characteristics • High thermal cycling performance • Package meets UL94V0 which guaranteed by Epoxy Mold Compound 3. Applications • Home appliance power supply • Discontinuous Current Mode (DCM) Power Factor Correction (PFC) 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating Conditions Notes VRRM repetitive peak reverse voltage IF(AV) average forward current δ = 0.5 ; square-wave pulse; Tmb ≤ 125 °C; Fig. 1; Fig. 2; Fig. 3 IFRM repetitive peak forward δ = 0.
