BYV10-20 - Schottky barrier diodes

Datasheet Summary

Description

The BYV10-20 to BYV10-40 types are Schottky barrier diodes fabricated in planar technology, and encapsulated in SOD81 hermetically sealed glass packages incorporating ImplotecTM(1) technology.

(1) Implotec is a trademark of Philips.

Fig.1 Simplified outline (SOD81) and symbol.

Features

  • Low switching losses.
  • Fast recovery time.
  • Guard ring protected.
  • Hermetically sealed leaded glass package.

📥 Download Datasheet

Datasheet preview – BYV10-20

Datasheet Details

Part number BYV10-20
Manufacturer NXP
File Size 20.19 KB
Description Schottky barrier diodes
Datasheet download datasheet BYV10-20 Datasheet
Additional preview pages of the BYV10-20 datasheet.

📁 Similar Datasheet

Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

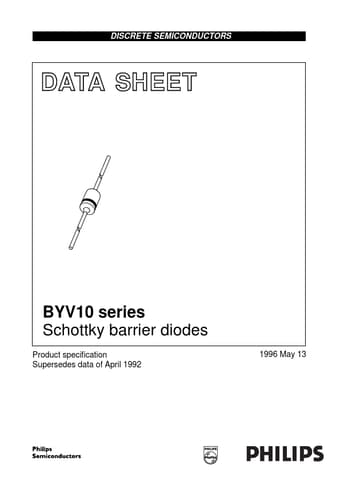

DISCRETE SEMICONDUCTORS DATA SHEET fpage M3D119 BYV10 series Schottky barrier diodes Product specification Supersedes data of April 1992 1996 May 13 Philips Semiconductors Product specification Schottky barrier diodes FEATURES • Low switching losses • Fast recovery time • Guard ring protected • Hermetically sealed leaded glass package. APPLICATIONS • Low power, switched-mode power supplies • Rectifying • Polarity protection. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL VRRM BYV10-20 BYV10-30 BYV10-40 IF(AV) Tstg Tj Note 1. Refer to SOD81 standard mounting conditions.
