BYV10-600P - Ultrafast power diode

Datasheet Summary

Description

Ultrafast power diode in a SOD59 (2-lead TO-220AC) plastic package.

2.

Features

  • Fast switching.
  • Low leakage current.
  • Low forward voltage drop.
  • Low thermal resistance.
  • Soft recovery characteristic 3.

📥 Download Datasheet

Datasheet preview – BYV10-600P

Datasheet Details

Part number BYV10-600P
Manufacturer WeEn
File Size 613.48 KB
Description Ultrafast power diode
Datasheet download datasheet BYV10-600P Datasheet
Additional preview pages of the BYV10-600P datasheet.

📁 Similar Datasheet

  • BYV10-600P - Ultrafast power diode (NXP)
  • BYV10-60 - SMALL SIGNAL SCHOTTKY DIODE (STMicroelectronics)
  • BYV10-20 - Schottky barrier diodes (NXP)
  • BYV10-30 - Schottky barrier diodes (NXP)
  • BYV10-40 - SMALL SIGNAL SCHOTTKY DIODES (STMicroelectronics)
  • BYV10-40 - Schottky barrier diodes (NXP)
  • BYV10ED-600P - Ultrafast power diode (NXP)
  • BYV10X-600P - Ultrafast power diode (NXP)
  • BYV1100 - Fast soft-recovery rectifier (NXP)
  • BYV116 - Rectifier diodes Schottky barrier (NXP)
Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text

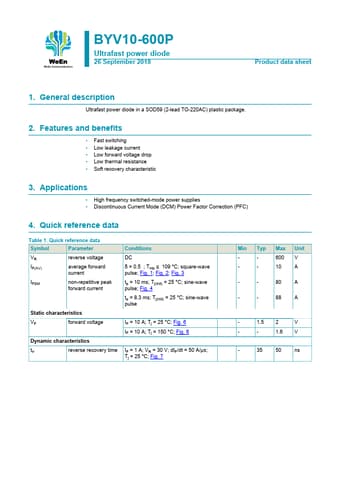

BYV10-600P Ultrafast power diode 26 September 2018 Product data sheet 1. General description Ultrafast power diode in a SOD59 (2-lead TO-220AC) plastic package. 2. Features and benefits • Fast switching • Low leakage current • Low forward voltage drop • Low thermal resistance • Soft recovery characteristic 3. Applications • High frequency switched-mode power supplies • Discontinuous Current Mode (DCM) Power Factor Correction (PFC) 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltage IF(AV) average forward current IFSM non-repetitive peak forward current Static characteristics VF forward voltage Dynamic characteristics trr reverse recovery time Conditions DC δ = 0.5 ; Tmb ≤ 109 °C; square-wave pulse; Fig. 1; Fig. 2; Fig.
