BYV52PI-200 Datasheet, Diodes, STMicroelectronics

BYV52PI-200 Features

• Diodes SUITED FOR SMPS VERY LOW FORWARD LOSSES NEGLIGIBLE SWITCHING LOSSES HIGH SURGE CURRENT CAPABILITY HIGH AVALANCHE ENERGY CAPABILITY INSULATED VERSION TOP3I : Insulating voltage = 2500 V

PDF File Details

Part number:

BYV52PI-200

Manufacturer:

STMicroelectronics ↗

File Size:

70.13kb

Download:

📄 Datasheet

Description:

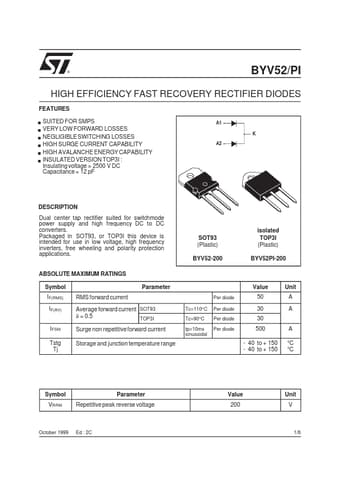

High efficiency fast recovery rectifier diodes. Dual center tap rectifier suited for switchmode power supply and high frequency DC to DC converters. Packaged in SOT93, or TOP3I this

BYV52PI-200 Application

• Applications SOT93 (Plastic) BYV52-200 isolated TOP3I (Plastic) BYV52PI-200 ABSOLUTE MAXIMUM RATINGS Symbol IF(RMS) IF(AV) RMS forward current A
