DMV1500H

DAMPER + MODULATION DIODE FOR VIDEO

ST Microelectronics

DMV1500H Features

* Full kit in one package High breakdown voltage capability Very fast recovery diode Specified turn on switching characteristics Low static and peak forward voltage drop for low dissipation Insulated version: Insulated voltage = 2000 VRMS Capacitance =

DMV1500H General Description

High voltage semiconductor especially designed for horizontal deflection stage in standard and high resolution video display with E/W correction. The insulated TO-220FPAB package includes both the DAMPER diode and the MODULATION diode, thanks to a dedicated design. Assembled on automated line, it of.

DMV1500H Datasheet (86.70 KB)

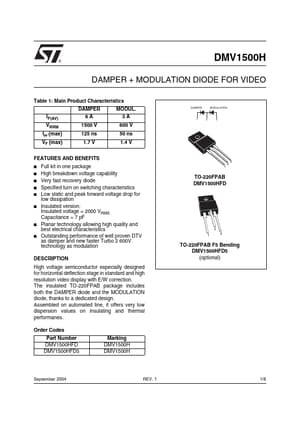

DMV1500H Datasheet Preview — Preview of DMV1500H PDF

Datasheet Details

Part number:

DMV1500H

Manufacturer:

STMicroelectronics ↗

File Size:

86.70 KB

Description:

Damper + modulation diode for video.
® DMV1500H DAMPER + MODULATION DIODE FOR VIDEO Table 1: Main Product Characteristics IF(AV) VRRM trr (max) VF (max) DAMPER 6A 1500 V 125 ns 1.7 V MO.
