DMV32, DMVxx Datasheet - ST Microelectronics

DMV32 DAMPER MODULATION DIODE FOR VIDEO

High voltage semiconductor especially designed for horizontal deflection stage in standard and high resolution video display with E/W correction. The insulated TO-220AB package includes both the DAMPER diode and the MODULATION diode. Assembled on automated line, it offers excellent insulating and di.

DMV32 Features

* 1 2 3 FULL KIT IN ONE PACKAGE HIGH BREAKDOWN VOLTAGE CAPABILITY VERY FAST RECOVERY DIODE SPECIFIED TURN ON SWITCHING CHARACTERISTICS LOW STATIC AND PEAK FORWARD VOLTAGE DROP FOR LOW DISSIPATION INSULATED VERSION: Insulated voltage = 2500 VRMS Capacitance = 7 pF PLANAR TECHNOLOGY ALLOWING HIGH QUA

DMVxx_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: DMV32, DMVxx. Please refer to the document for exact specifications by model.

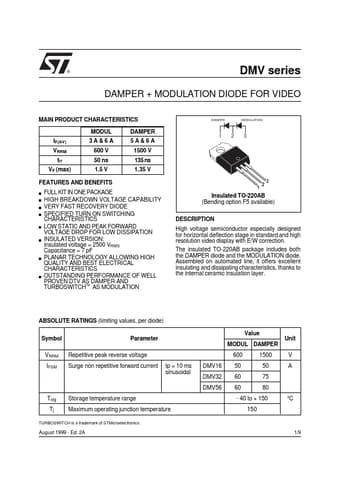

DMV32 Datasheet Preview Page 2 DMV32 Datasheet Preview Page 3

Datasheet Details

Part number:

DMV32, DMVxx

Manufacturer:

STMicroelectronics ↗

File Size:

114.14 KB

Description:

Damper modulation diode for video.

Note:

This datasheet PDF includes multiple part numbers: DMV32, DMVxx.
Please refer to the document for exact specifications by model.
