DMVxx, DAMPER MODULATION DIODE FOR VIDEO

® DMV series DAMPER + MODULATION DIODE FOR VIDEO MAIN PRODUCT CHARACTERISTICS MODUL IF(AV) VRRM trr VF (max) 3A&6A 600 V 50 ns 1.5 V DAMPER 5A&6A 15.
High voltage semiconductor especially designed for horizontal deflection stage in standard and high resolution video display with E/W correction.

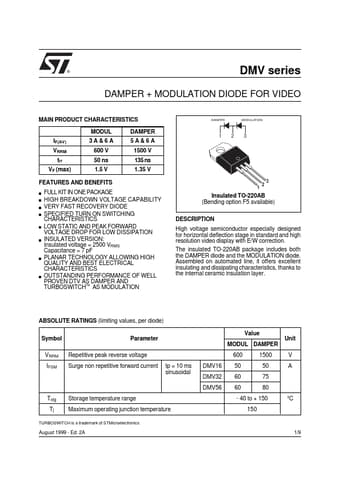

datasheet Preview Page 1 from Datasheet4u.com

DMVxx_STMicroelectronics.pdf

DMVxx Datasheet Preview — Preview of DMVxx PDF

Datasheet Details

Part number:

DMVxx

Manufacturer:

STMicroelectronics ↗

File Size:

114.14 KB

Description:

DAMPER MODULATION DIODE FOR VIDEO

Features

* 1 2 3 FULL KIT IN ONE PACKAGE HIGH BREAKDOWN VOLTAGE CAPABILITY VERY FAST RECOVERY DIODE SPECIFIED TURN ON SWITCHING CHARACTERISTICS LOW STATIC AND PEAK FORWARD VOLTAGE DROP FOR LOW DISSIPATION INSULATED VERSION: Insulated voltage = 2500 VRMS Capacitance = 7 pF PLANAR TECHNOLOGY ALLOWING HIGH QUA
