M29F102BB - 1 Mbit 64Kb x16 / Boot Block Single Supply Flash Memory

Datasheet Summary

Description

.

.

.

.

.

.

📥 Download Datasheet

Datasheet preview – M29F102BB

Datasheet Details

Part number M29F102BB
Manufacturer STMicroelectronics
File Size 432.34 KB
Description 1 Mbit 64Kb x16 / Boot Block Single Supply Flash Memory
Datasheet download datasheet M29F102BB Datasheet
Additional preview pages of the M29F102BB datasheet.

📁 Similar Datasheet

  • M29F160FB - Micron Parallel NOR Flash Embedded Memory (Micron)
  • M29F160FB - (M29Fxx0Fx) Top / Bottom Boot Block 5 V Supply Flash Memory (Numonyx)
  • M29F160FT - Micron Parallel NOR Flash Embedded Memory (Micron)
  • M29F160FT - (M29Fxx0Fx) Top / Bottom Boot Block 5 V Supply Flash Memory (Numonyx)
  • M29F200FB - Micron Parallel NOR Flash Embedded Memory (Micron)
  • M29F200FB - (M29Fxx0Fx) Top / Bottom Boot Block 5 V Supply Flash Memory (Numonyx)
  • M29F200FT - Micron Parallel NOR Flash Embedded Memory (Micron)
  • M29F200FT - (M29Fxx0Fx) Top / Bottom Boot Block 5 V Supply Flash Memory (Numonyx)
  • M29F400BB - 4-Mbit Single Supply Flash Memory (STMicroelectronics)
  • M29F400BT - 4-Mbit Single Supply Flash Memory (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • M29F100B - 1 Mbit 128Kb x8 or 64Kb x16 / Boot Block Single Supply Flash Memory
  • M29F100BB - 1 Mbit 128Kb x8 or 64Kb x16 / Boot Block Single Supply Flash Memory
  • M29F100BT - 1 Mbit 128Kb x8 or 64Kb x16 / Boot Block Single Supply Flash Memory
  • M29F100T - 1 Mbit 128Kb x8 or 64Kb x16 / Boot Block Single Supply Flash Memory
  • M29F160 - 16 Mbit 2Mb x8 or 1Mb x16 / Boot Block Single Supply Flash Memory
  • M29F160BB - 16 Mbit 2Mb x8 or 1Mb x16 / Boot Block Single Supply Flash Memory
  • M29F160BT - 16 Mbit 2Mb x8 or 1Mb x16 / Boot Block Single Supply Flash Memory
  • M29F002B - 2 Mbit 256Kb x8 / Boot Block Single Supply Flash Memory

Full PDF Text Transcription

Click to expand full text

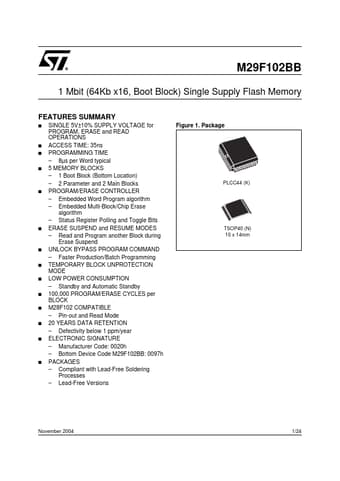

M29F102BB 1 Mbit (64Kb x16, Boot Block) Single Supply Flash Memory FEATURES SUMMARY ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS ACCESS TIME: 35ns PROGRAMMING TIME – 8µs per Word typical 5 MEMORY BLOCKS – 1 Boot Block (Bottom Location) – 2 Parameter and 2 Main Blocks PROGRAM/ERASE CONTROLLER – Embedded Word Program algorithm – Embedded Multi-Block/Chip Erase algorithm – Status Register Polling and Toggle Bits ERASE SUSPEND and RESUME MODES – Read and Program another Block during Erase Suspend UNLOCK BYPASS PROGRAM COMMAND – Faster Production/Batch Programming TEMPORARY BLOCK UNPROTECTION MODE LOW POWER CONSUMPTION – Standby and Automatic Standby 100,000 PROGRAM/ERASE CYCLES per BLOCK M28F102 COMPATIBLE – Pin-out and Read Mode 20
