M29F160BB Datasheet - ST Microelectronics

M29F160BB - 16 Mbit 2Mb x8 or 1Mb x16 / Boot Block Single Supply Flash Memory

The M29F160B is a 16Mbit (2Mb x8 or 1Mb x16) non-volatile memory that can be read, erased and reprogrammed.

These operations can be performed using a single 5V supply.

On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM.

The memory is divided into

M29F160BT M29F160BB 16 Mbit (2Mb x8 or 1Mb x16, Boot Block) Single Supply Flash Memory PRELIMINARY DATA s SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS ACCESS TIME: 55ns PROGRAMMING TIME 8µs per Byte/Word typical 35 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 32 Main Blocks s s s s PROGRAM/ERASE CONTROLLER Embedded Byte/Word Program algorithm Embedded Multi-Block/Chip Erase algorithm St

M29F160BB Features

* ions after tPHEL or tRHEL, whichever occurs last. See the Ready/Busy Output section, Table 17 and Figure 10, Reset/ Temporary Unprotect AC Characteri

M29F160BB_STMicroelectronics.pdf

Preview of M29F160BB PDF

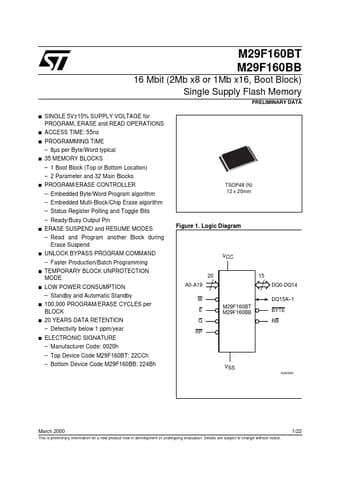

M29F160BB Datasheet Preview Page 2 M29F160BB Datasheet Preview Page 3

Datasheet Details

Part number:

M29F160BB

Manufacturer:

STMicroelectronics ↗

File Size:

174.31 KB

Description:

16 mbit 2mb x8 or 1mb x16 / boot block single supply flash memory.
