M36W108B

8 Mbit 1Mb x8 / Boot Block Flash Memory and 1 Mbit 128Kb x8 SRAM Low Voltage Multi-Memory Product

ST Microelectronics

M36W108B Datasheet (247.26 KB)

M36W108B Datasheet Preview — Preview of M36W108B PDF

Datasheet Details

Part number:

M36W108B

Manufacturer:

STMicroelectronics ↗

File Size:

247.26 KB

Description:

8 mbit 1mb x8 / boot block flash memory and 1 mbit 128kb x8 sram low voltage multi-memory product.

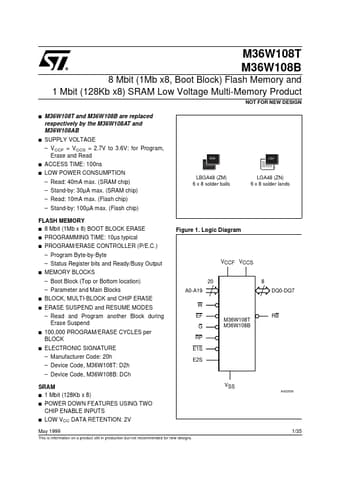

M36W108T M36W108B 8 Mbit (1Mb x8, Boot Block) Flash Memory and 1 Mbit (128Kb x8) SRAM Low Voltage Multi-Memory Product NOT FOR NEW DESIGN s M36W108T .

M36W108B Features

* USING TWO CHIP ENABLE INPUTS LOW VCC DATA RETENTION: 2V 1/35 s May 1999 This is information on a product still in production but not recommended for new designs. M36W108T, M36W108B Figure 2. LBGA and LGA Connections (Top View) 1 2 3 4 5 6 A W A14 A11 G A10 E1S B VCCS A18 A8 DQ7 DQ5

M36W108B General Description

The M36W108 is multi-chip device containing an 8 Mbit boot block Flash memory and a 1 Mbit of SRAM. The device is offered in the new Chip Scale Package solutions: LBGA48 1.0 mm ball pitch and LGA48 1.0 mm land pitch. The two components, of the package’s overall 9 Mbit of memory, are distinguishable .
