M36W432BG

32 Mbit 2Mb x16 / Boot Block Flash Memory and 4 Mbit 256Kb x16 SRAM / Multiple Memory Product

M36W432BG Features

* SUMMARY s MULTIPLE MEMORY PRODUCT

* 32 Mbit (2Mb x 16), Boot Block, Flash Memory

* 4 Mbit (256Kb x 16) SRAM Memory s SUPPLY VOLTAGE

* VDDF = 2.7V to 3.3V

* VDDS = VDDQF = 2.7V to 3.3V

* VPPF = 12V for Fast Program (optional) s s s SRAM s 4 Mbit (256Kb x 16) s

M36W432BG General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Figure 2. Logic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Table 1. Signal Names . . . . . . . . .

M36W432BG Datasheet (439.53 KB)

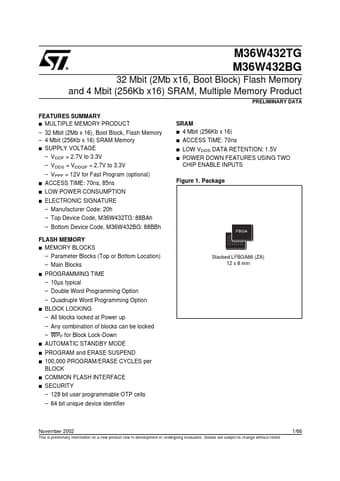

Preview of M36W432BG PDF

Datasheet Details

Part number:

M36W432BG

Manufacturer:

STMicroelectronics ↗

File Size:

439.53 KB

Description:

32 mbit 2mb x16 / boot block flash memory and 4 mbit 256kb x16 sram / multiple memory product.
