M36W0R6040B0, M36W0R6040T0 - 64-Mbit Flash Memory and 16-Mbit PSRAM

M36W0R6040B0 Description

www.DataSheet4U.com M36W0R6040T0 M36W0R6040B0 64 Mbit (4Mb x16, Multiple Bank, Burst) Flash Memory and 16 Mbit (1Mb x16) PSRAM, Multi-Chip Package FE.

M36W0R6040B0 Features

* SUMMARY
* MULTI-CHIP PACKAGE
* 1 die of 64 Mbit (4Mb x 16) Flash Memory
* 1 die of 16 Mbit (1Mb x 16) Pseudo SRAM SUPPLY VOLTAGE
* VDDF = VDDP = VDDQ = 1.7V to 1.95V LOW POWER CONSUMPTION ELECTRONIC SIGNATURE
* Manufacturer Code: 20h

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M36W0R6040B0, M36W0R6040T0. Please refer to the document for exact specifications by model.

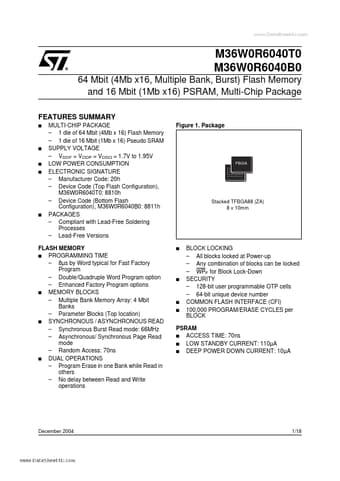

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M36W0R6040B0, M36W0R6040T0
Manufacturer
STMicroelectronics ↗
File Size
348.36 KB
Datasheet
M36W0R6040T0_STMicroelectronics.pdf
Description
64-Mbit Flash Memory and 16-Mbit PSRAM
Note
This datasheet PDF includes multiple part numbers: M36W0R6040B0, M36W0R6040T0.
Please refer to the document for exact specifications by model.
