M41T0 - Serial real-time clock

ST Microelectronics

📥 Download Datasheet

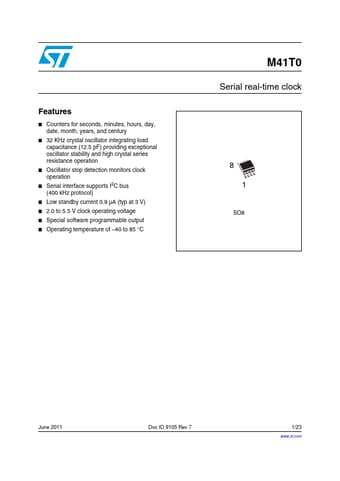

M41T0 Datasheet Preview — Preview of M41T0 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: M41T0
Manufacturer: STMicroelectronics ↗
File Size: 304.76 KB
Datasheet: M41T0_STMicroelectronics.pdf
Description: Serial real-time clock

M41T0 Product details

Description

. 7 2.1 2-wire bus characteristics . . .

Features

Counters for seconds, minutes, hours, day, date, month, years, and century.
32 KHz crystal oscillator integrating load capacitance (12.5 pF) providing exceptional oscillator stability and high crystal series resistance operation.
Oscillator stop detection monitors clock operation.
Serial interface supports I2C bus (400 kHz protocol).
Low standby current 0.9 µA (typ at 3 V).
2.0 to 5.5 V clock operating voltage.
Special software programmable output.
Operat.
