M41T62

Low-power serial real-time clocks

M41T62 Features

* Serial real-time clock (RTC) with alarm functions

* 400 kHz I²C serial interface

* Memory mapped registers for seconds, minutes, hours, day, date, month, year, and century

* Tenths/hundredths of second register

* 350 nA timekeeping current at 3 V

* T

M41T62 General Description

1 Description The M41T6x is a low-power serial real-time clock (RTC) with a built-in 32.768 kHz oscillator. Eight registers are used for the clock/calendar function and are configured in binary-coded decimal (BCD) format. Further eight registers provide status/control of alarm, 32 kHz output, cali.

M41T62 Datasheet (700.13 KB)

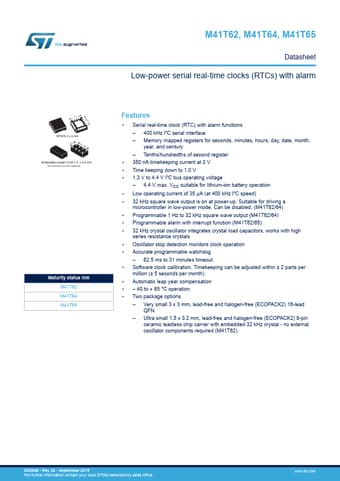

Preview of M41T62 PDF

Datasheet Details

Part number:

M41T62

Manufacturer:

STMicroelectronics ↗

File Size:

700.13 KB

Description:

Low-power serial real-time clocks.
M41T62, M41T64, M41T65 Datasheet Low-power serial real-time clocks (RTCs) with alarm 3mm 3mm QFN16 3 x 3 mm 1.5 mm 3.2 mm Embedded crystal LCC8 .
