M41T00 - serial real time clock

ST Microelectronics

📥 Download Datasheet

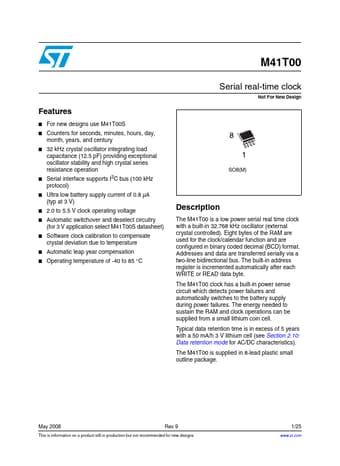

M41T00 Datasheet Preview — Preview of M41T00 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: M41T00
Manufacturer: STMicroelectronics ↗
File Size: 160.54 KB
Datasheet: M41T00_STMicroelectronics.pdf
Description: serial real time clock

M41T00 Product details

Description

The M41T00 is a low power serial real time clock with a built-in 32.768 kHz oscillator (external crystal controlled).

Features

For new designs use M41T00S.
Counters for seconds, minutes, hours, day, month, years, and century.
32 kHz crystal oscillator integrating load capacitance (12.5 pF) providing exceptional oscillator stability and high crystal series resistance operation.
Serial interface supports I2C bus (100 kHz protocol).
Ultra low battery supply current of 0.8 µA (typ at 3 V).
2.0 to 5.5 V clock operating voltage.
Automatic switchover and deselect circuitry (for 3 V applicati.
