M50FLW040B

4 Mbit 3V Supply Firmware Hub / Low Pin Count Flash Memory

M50FLW040B Features

* SUMMARY s s s s s s s FLASH MEMORY

* Compatible with either the LPC interface or the FWH interface (Intel Spec rev1.1) used in PC BIOS applications

* 5 Signal Communication Interface supporting Read and Write Operations

* 5 Additional General Purpose Inputs for platform

M50FLW040B General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Figure 2. Figure 3. Table 1. Table 2. Figure 4. Figure 5. Figure 6. Table 3. Table 4. Logic Diagram (FWH/LPC Interface) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

M50FLW040B Datasheet (918.38 KB)

Preview of M50FLW040B PDF

Datasheet Details

Part number:

M50FLW040B

Manufacturer:

STMicroelectronics ↗

File Size:

918.38 KB

Description:

4 mbit 3v supply firmware hub / low pin count flash memory.

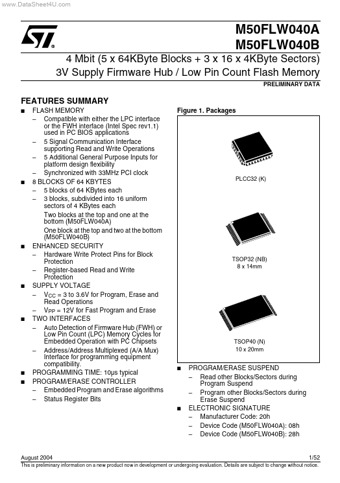

www.DataSheet4U.com M50FLW040A M50FLW040B 4 Mbit (5 x 64KByte Blocks + 3 x 16 x 4KByte Sectors) 3V Supply Firmware Hub / Low Pin Count Flash Memory P.
