M50FW016 16 Mbit 2Mb x8/ Uniform Block 3V Supply Firmware Hub Flash Memory

The M50FW016 is a 16 Mbit (2Mb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (3.0 to 3.6V) supply. For fast programming and fast erasing, an optional 12V power supply can be used to reduce the programming and the erasi.

M50FW016 16 Mbit (2Mb x8, Uniform Block) 3V Supply Firmware Hub Flash Memory PRELIMINARY DATA s SUPPLY VOLTAGE VCC = 3 V to 3.6 V for Program, Erase and Read Operations s VPP = 12 V for Fast Program and Fast Erase TWO INTERFACES Firmware Hub (FWH) Interface for embedded operation with PC Chipsets Address/Address Multiplexed (A/A Mux) Interface for programming equipment compatibility s FIRMWARE HUB (FWH) HARDWARE INTERFACE MODE 5 Signal Commu.

M50FW016 Features

* e pins do not have assigned functions in this revision of the part.

M50FW016_STMicroelectronics.pdf

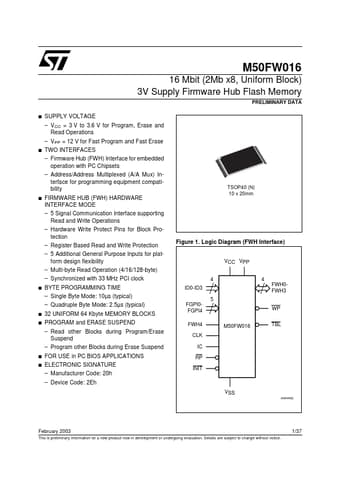

M50FW016 Datasheet Preview — Preview of M50FW016 PDF

Datasheet Details

Part number:

M50FW016

Manufacturer:

STMicroelectronics ↗

File Size:

267.21 KB

Description:

16 mbit 2mb x8/ uniform block 3v supply firmware hub flash memory.
