M50LPW012 2 Mbit 256Kb x8/ Boot Block 3V Supply Low Pin Count Flash Memory

M50LPW012 Description

M50LPW012 2 Mbit (256Kb x8, Boot Block) 3V Supply Low Pin Count Flash Memory PRELIMINARY DATA s SUPPLY VOLTAGE * VCC = 3V to 3.6V for Program.
The M50LPW012 is a 2Mbit (256Kb x8) nonvolatile memory that can be read, erased and reprogrammed.

M50LPW012 Features

* s ADDRESS/ADDRESS MULTIPLEXED (A/A MUX)
* Interface for programming equipment compatibility PLCC32 (K) s LOW PIN COUNT (LPC) HARDWARE INTERFACE MODE
* 5 Signal Communication Interface supporting Read and Write Operations
* Hardware Write Protect Pins for Block Protection

M50LPW012 Applications

* ELECTRONIC SIGNATURE
* Manufacturer Code: 20h

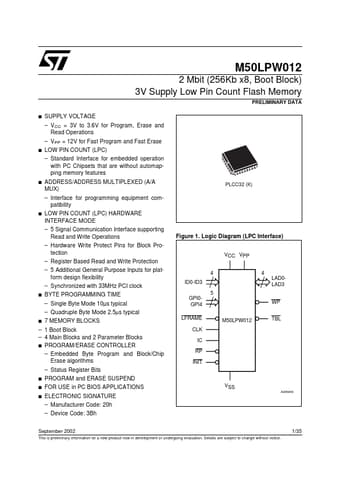

* Device Code: 3Bh VSS AI06949 September 2002 This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice. 1/35 M50LPW012 Figure 2. Logic Diagram (A/A Mux I
