M50LPW041

4 Mbit 512Kb x8/ Uniform Block 3V Supply Low Pin Count Flash Memory

M50LPW041 Features

* PLCC32 (K) s ADDRESS/ADDRESS MULTIPLEXED

* A/A Mux Interface for programming equipment compatibility s LOW PIN COUNT (LPC) HARDWARE INTERFACE MODE

* 5 Signal Communication Interface supporting Read and Write Operations

* Hardware Write Protect Pins for Block Protection

M50LPW041 General Description

The M50LPW041 is a 4 Mbit (512Kb x8) nonvolatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (3.0 to 3.6V) supply. For fast programming and fast erasing in production lines an optional 12V power supply can be used to reduce the progr.

M50LPW041 Datasheet (268.48 KB)

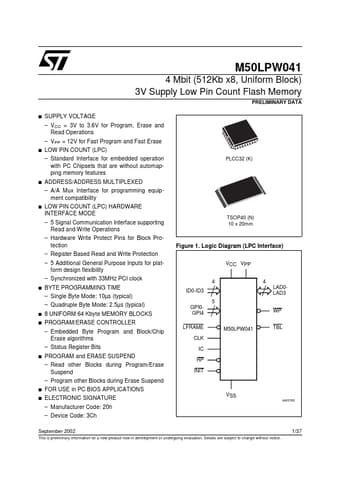

Preview of M50LPW041 PDF

Datasheet Details

Part number:

M50LPW041

Manufacturer:

STMicroelectronics ↗

File Size:

268.48 KB

Description:

4 mbit 512kb x8/ uniform block 3v supply low pin count flash memory.
M50LPW041 4 Mbit (512Kb x8, Uniform Block) 3V Supply Low Pin Count Flash Memory PRELIMINARY DATA s SUPPLY VOLTAGE

* VCC = 3V to 3.6V for Prog.
