M50LPW040 4 Mbit 512Kb x8/ Uniform Block 3V Supply Low Pin Count Flash Memory

The M50LPW040 is a 4 Mbit (512Kb x8) nonvolatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (3.0 to 3.6V) supply. For fast programming and fast erasing in production lines an optional 12V power supply can be used to reduce the progr.

M50LPW040 4 Mbit (512Kb x8, Uniform Block) 3V Supply Low Pin Count Flash Memory PRELIMINARY DATA s SUPPLY VOLTAGE VCC = 3V to 3.6V for Program, Erase and Read Operations VPP = 12V for Fast Program and Fast Erase (optional) s TWO INTERFACES Low Pin Count (LPC) Standard Interface for embedded operation with PC Chipsets. Address/Address Multiplexed (A/A Mux) Interface for programming equipment compatibility. TSOP40 (N) 10 x 20mm PLCC32 (K) s LPC HARDWARE.

M50LPW040 Features

* t Low, VIL, Program and Block Erase operations in the Main Blocks have no effect, reg

M50LPW040 Datasheet (272.67 KB)

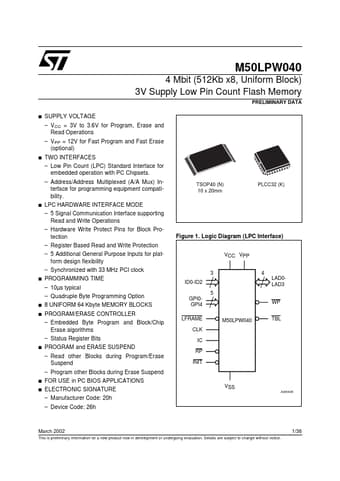

M50LPW040 Datasheet Preview — Preview of M50LPW040 PDF

Datasheet Details

Part number:

M50LPW040

Manufacturer:

STMicroelectronics ↗

File Size:

272.67 KB

Description:

4 mbit 512kb x8/ uniform block 3v supply low pin count flash memory.
