M54HC533 OCTAL D-TYPE LATCH

The M54/74HC373/533 are high speed CMOS OCTAL LATCH WITH 3-STATE OUTPUTS 2 fabricated with in silicon gate C MOS technology. These ICs achive the high speed operation similar to equivalent LSTTL while maintaning the CMOS low power dissipation. These 8 bit D-Type latches are controlled by a latch ena.

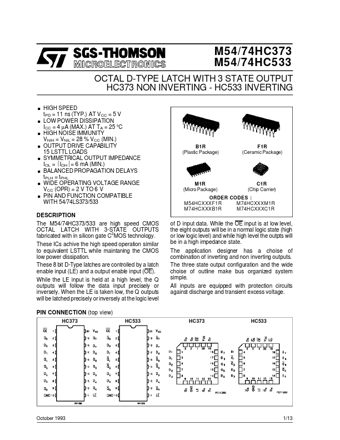

M54/74HC373 M54/74HC533 OCTAL D-TYPE LATCH WITH 3 STATE OUTPUT HC373 NON INVERTING - HC533 INVERTING . . . . . . . . HIGH SPEED tPD = 11 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA = 25 °C HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE IOL = IOH= 6 mA (MIN.) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS373/533 .
