M54HC592 Datasheet - ST Microelectronics

M54HC592 8 BIT REGISTER BINARY COUNTER

The M54/74HC592 is a high speed CMOS 8 BIT REGISTER COUNTER fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The M54/74HC592 is a parallel input, 8 bit storage register feeding an 8 bit binary counter. Both th.
M54HC592 M74HC592 8 BIT REGISTER BINARY COUNTER . . . . . . . . HIGH SPEED fMAX = 35 MHz (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA = 25 °C OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS BALANCED PROPAGATION DELAYS tPLH = tPHL SYMMETRICAL OUTPUT IMPEDANCE IOL = IOH = 4 mA (MIN.) HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS592 B1R (Plastic Package) F1R (Ceramic Package) M1R (Mic.

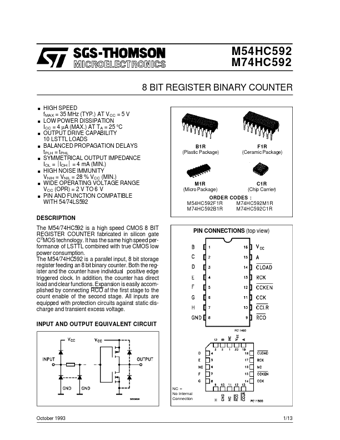

M54HC592 Datasheet (282.80 KB)

Preview of M54HC592 PDF
M54HC592 Datasheet Preview Page 2 M54HC592 Datasheet Preview Page 3

Datasheet Details

Part number:

M54HC592

Manufacturer:

STMicroelectronics ↗

File Size:

282.80 KB

Description:

8 bit register binary counter.
