M54HC595

Rad-hard high speed 2V to 6V CMOS logic

M54HC595 Features

* ESCC qualified

* 7 V Absolute maximum ratings

* 2 V to 6 V operating voltage for CMOS M54HCxxx series

* 4.5 V to 5.5 V operating voltage for TTL M54HCTxxx series

* Ceramic hermetic packages

* -55 °C to +125 °C operating temperature range

* Ra

M54HC595 General Description

The M54HCxxx and M54HCTxxx series is composed of CMOS functions specifically designed to meet the radiation requirements of the aerospace industry. They include a large set of gates, flip-flops, multiplexers, counters, bus interface and several other functions. The maximum operating frequency of the.

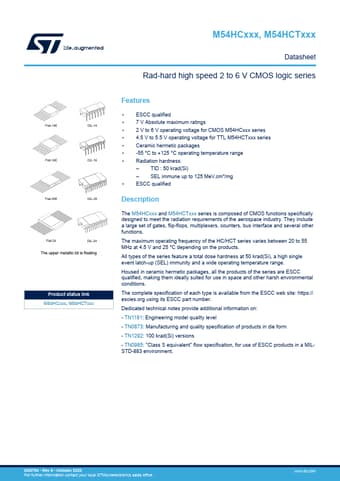

M54HC595 Datasheet (0.97 MB)

Preview of M54HC595 PDF

Datasheet Details

Part number:

M54HC595

Manufacturer:

STMicroelectronics ↗

File Size:

0.97 MB

Description:

Rad-hard high speed 2v to 6v cmos logic.
