M74HC107 - DUAL J-K FLIP FLOP

Product Overview

📥 Download Datasheet

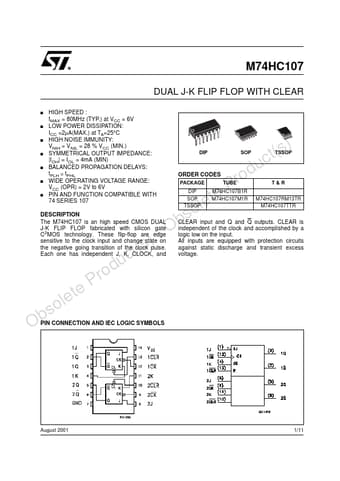

Datasheet preview – M74HC107

Datasheet Details

Part number M74HC107
Manufacturer STMicroelectronics
File Size 169.72 KB
Description DUAL J-K FLIP FLOP
Datasheet download datasheet M74HC107 Datasheet
Additional preview pages of the M74HC107 datasheet.

Product details

Description

bsThe M74HC107 is an high speed CMOS DUAL J-K FLIP FLOP fabricated with silicon gate OC2MOS technology.These flip-flop are edge -sensitive to the clock input and change state on t(s)the negative going transition of the clock pulse.Each one has independent J, K, CLOCK, and DIP SOP TSSOP ORDER CODES PACKAGE TUBE DIP SOP TSSOP M74HC107B1R M74HC107M1R T&R M74HC107RM13TR M74HC107TTR CLEAR input and Q and Q outputs.CLEAR is independent of the clock and accomplished by a logic low on the i
