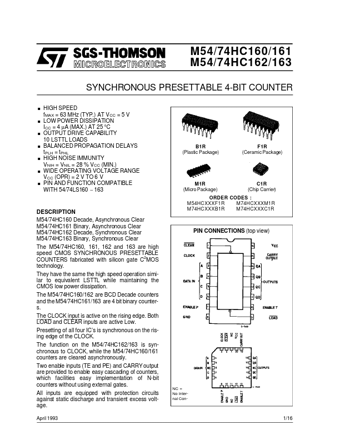

M74HC160 SYNCHRONOUS PRESETTABLE 4-BIT COUNTER

M54/74HC160 Decade, Asynchronous Clear M54/74HC161 Binary, Asynchronous Clear M54/74HC162 Decade, Synchronous Clear M54/74HC163 Binary, Synchronous Clear The M54/74HC160, 161, 162 and 163 are high speed CMOS SYNCHRONOUS PRESETTABLE COUNTERS fabricated with silicon gate C2MOS technology. They have th.

M54/74HC160/161 M54/74HC162/163 SYNCHRONOUS PRESETTABLE 4-BIT COUNTER . . . . . . . HIGH SPEED fMAX = 63 MHz (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT 25 °C OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS BALANCED PROPAGATION DELAYS tPLH = tPHL HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS160 ∼ 163 B1R (Plastic Package) F1R (Ceramic Package) M1R (Micro Package) C1R (Chip Carrier) D.
