Part number:
M74HC27
Manufacturer:
File Size:
150.17 KB
Description:
Triple 3-input nor gate.
M74HC27_STMicroelectronics.pdf
Datasheet Details
Part number:
M74HC27
Manufacturer:
File Size:
150.17 KB
Description:
Triple 3-input nor gate.

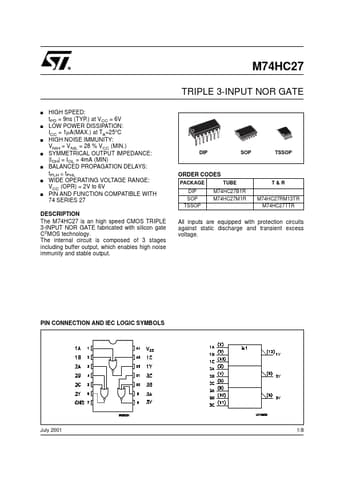

M74HC27, TRIPLE 3-INPUT NOR GATE
The M74HC27 is an high speed CMOS TRIPLE 3-INPUT NOR GATE fabricated with silicon gate C2MOS technology.
The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output.
All inputs are equipped with protection circuits against static dischar
M74HC27 TRIPLE 3-INPUT NOR GATE s s s s s s s HIGH SPEED: tPD = 9ns (TYP.) at VCC = 6V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C HIGH NOISE IMMUNITY: VNIH = V NIL = 28 % VCC (MIN.) SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 4mA (MIN) BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 27 DIP SOP TSSOP ORDER CODES PACKAGE DIP SOP TSSOP TUBE M74HC27B1R M74HC27M1R T&R M74HC27RM13TR M74HC27TTR DES
