3 TO 8 LINE DECODER/LATCH INVERTING

M74HCT137 General Description

The M54/74HCT137 is a high speed CMOS3TO8LINE DECODER/LATCH (INVERTING) fabricated in silicon 2 gateC MOStechnology. Ithas the samehigh speed performance ofLSTTL combined with trueCMOSlow power consumption. This device is a 3 to 8 line decoder with latches onthe three address inputs. When GLgoes fro.

M74HCT137 Datasheet (260.84 KB)

M74HCT137 Datasheet Preview — Preview of M74HCT137 PDF

Datasheet Details

Part number:

M74HCT137

Manufacturer:

STMicroelectronics ↗

File Size:

260.84 KB

Description:

3 to 8 line decoder/latch inverting.

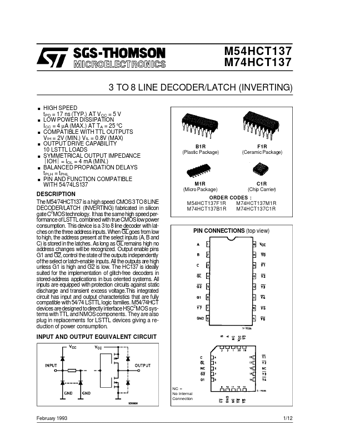

M54HCT137 M74HCT137 3 TO 8 LINE DECODER/LATCH (INVERTING) . . . . . . . HIGH SPEED tPD = 17 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA .
