PLCC44 Datasheet - ST Microelectronics

PLCC44 MEMORY

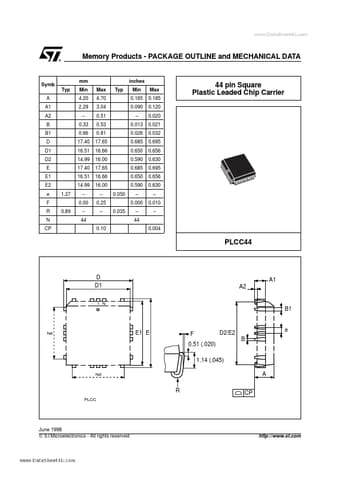

www.DataSheet4U.com Memory Products - PACKAGE OUTLINE and MECHANICAL DATA Symb mm inches Typ Min Max Typ Min Max A 4.20 4.70 0.165 0.185 A1 2.29 3.04 0.090 0.120 A2 0.51 0.020 B 0.33 0.53 0.013 0.021 B1 0.66 0.81 0.026 0.032 D 17.40 17.65 0.685 0.695 D1 16.51 16.66 0.650 0.656 D2 14.99 16.00 0.590 0.630 E 17.40 17.65 0.685 0.695 E1 16.51 16.66 0.650 0.656 E2 14.99 16.00 0.590 0.630 e 1.27 0.050 F.

PLCC44_STMicroelectronics.pdf

Preview of PLCC44 PDF
