ST13007N

HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTORS

ST Microelectronics

ST13007N General Description

The device is manufactured using high voltage Multi Epitaxial Planar technology for high switching speeds and high voltage capability. They use a Cellular Emitter structure to enhance switching speeds. 1 2 3 1 2 3 TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V C.

ST13007N Datasheet (75.47 KB)

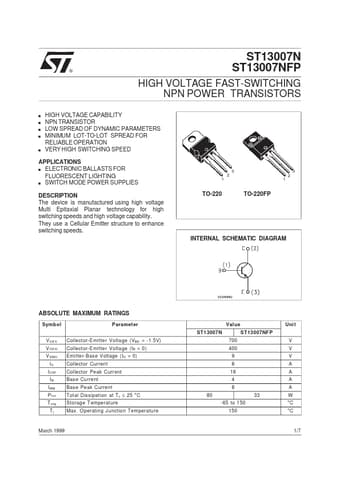

ST13007N Datasheet Preview — Preview of ST13007N PDF

Datasheet Details

Part number:

ST13007N

Manufacturer:

STMicroelectronics ↗

File Size:

75.47 KB

Description:

High voltage fast-switching npn power transistors.
® ST13007N ST13007NFP HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTORS s s s s s HIGH VOLTAGE CAPABILITY NPN TRANSISTOR LOW SPREAD OF DYNAMIC PAR.
