ST19SF64 Smartcard MCU With 64 KBytes EEPROM

ST Microelectronics

Description

® ST19SF64 Smartcard MCU With 64 KBytes EEPROM DATA BRIEFING s s 8 BIT ARCHITECTURE CPU 32 KBytes of USER ROM WITH PARTITIONING SYSTEM ROM FOR LIBR.
The ST19SF64, a member of the ST19 device family, is a serial access microcontroller especially designed for very large volume and cost competitive se.

📥 Download Datasheet

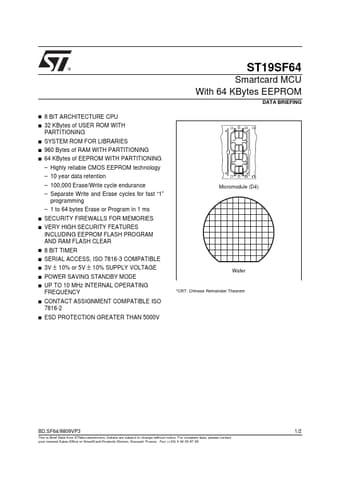

ST19SF64 Datasheet Preview — Preview of ST19SF64 PDF

Datasheet Specifications

Part number: ST19SF64
Manufacturer: STMicroelectronics ↗
File Size: 27.80 KB
Datasheet: ST19SF64_STMicroelectronics.pdf
Description: Smartcard MCU With 64 KBytes EEPROM

Features

* INCLUDING EEPROM FLASH PROGRAM AND RAM FLASH CLEAR 8 BIT TIMER SERIAL ACCESS, ISO 7816-3 COMPATIBLE 3V ± 10% or 5V ± 10% SUPPLY VOLTAGE POWER SAVING STANDBY MODE UP TO 10 MHz INTERNAL OPERATING FREQUENCY CONTACT ASSIGNMENT COMPATIBLE ISO 7816-2 ESD PROTECTION GREATER THAN 5000V
* CRT: Chinese Rem

Applications

* SOFTWARE DEVELOPMENT Software development and firmware (ROM code/ options) generation are completed by the ST16-19 HDS development system. Figure 1. Block Diagram USER ROM RAM EEPROM 960 Bytes 64 K Bytes 32 K Bytes SYSTEM ROM MEMORY ACCESS FIREWALL SYSTEM ROM FIREWALL INTERNAL BUS CLOCK
