ST485E LOW POWER RS-485/RS-422 TRANSCEIVER

The ST485E is al low power transceiver for RS-485 and RS-422 communication. Each driver output and receiver input is protected against ±15KV electrostatic discharge (H.B.M.) (ESD) shocks, without latcup. These parts contain one ORDERING CODES Type ST485ECN ST485EBN ST485EXN ST485ECD ST485EBD ST485EX.

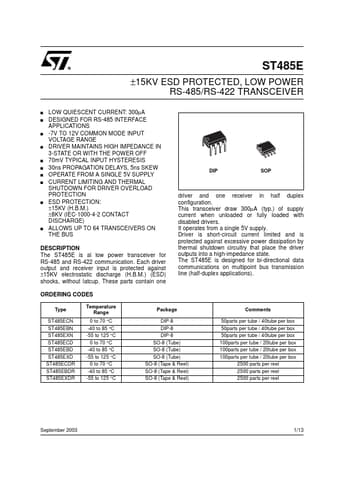

www.DataSheet4U.com ST485E ±15KV ESD PROTECTED, LOW POWER RS-485/RS-422 TRANSCEIVER s s s s s s s s s s LOW QUIESCENT CURRENT: 300µA DESIGNED FOR RS-485 INTERFACE APPLICATIONS -7V TO 12V COMMON MODE INPUT VOLTAGE RANGE DRIVER MAINTAINS HIGH IMPEDANCE IN 3-STATE OR WITH THE POWER OFF 70mV TYPICAL INPUT HYSTERESIS 30ns PROPAGATION DELAYS, 5ns SKEW OPERATE FROM A SINGLE 5V SUPPLY CURRENT LIMITING AND THERMAL SHUTDOWN FOR DRIVER OVERLOAD PROTECTION ESD PROTECTION: ±15KV (H.B.M.) ±8KV (IEC-100.
