ST485EX, ST485EB Datasheet - STMicroelectronics

ST485EX RS-485/RS-422 transceiver

SO-8 Driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry that place the driver outputs into a high-impedance state. The ST485E is designed for bi-directional data communications on multipoint bus transmission lines (half-duplex .

ST485EX Features

* Low quiescent current: 300 µA

* Designed for RS-485 interface application

* - 7 V to 12 V common mode input voltage range

* Driver maintains high impedance in 3-state or with the power OFF

* 70 mV typical input hysteresis

* 30 ns propagation delay, 5 ns skew

* Operates

ST485EB-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: ST485EX, ST485EB. Please refer to the document for exact specifications by model.

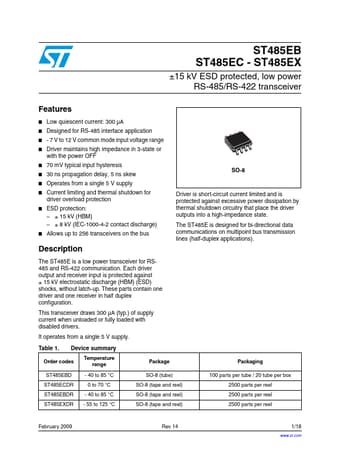

ST485EX Datasheet Preview Page 2 ST485EX Datasheet Preview Page 3
