ST485EB Datasheet - STMicroelectronics

ST485EB-STMicroelectronics.pdf

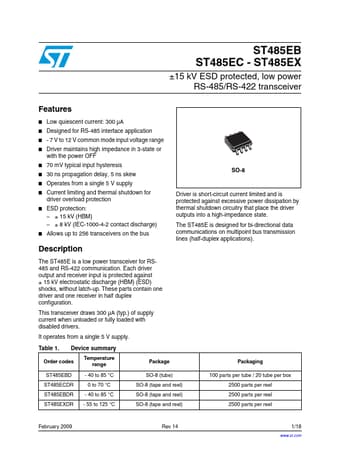

Preview of ST485EB PDF
ST485EB Datasheet Preview Page 2 ST485EB Datasheet Preview Page 3

Datasheet Details

Part number:

ST485EB

Manufacturer:

STMicroelectronics ↗

File Size:

668.15 KB

Description:

Rs-485/rs-422 transceiver.

ST485EB, RS-485/RS-422 transceiver

SO-8 Driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry that place the driver outputs into a high-impedance state.

The ST485E is designed for bi-directional data communications on multipoint bus transmission lines (half-duplex

ST485EB Features

* Low quiescent current: 300 µA

* Designed for RS-485 interface application

* - 7 V to 12 V common mode input voltage range

* Driver maintains high impedance in 3-state or with the power OFF

* 70 mV typical input hysteresis

* 30 ns propagation delay, 5 ns skew

* Operates
