STB60NE03L-12 - N-CHANNEL Power MOSFET

STB60NE03L-12 Description

® STB60NE03L-12 N - CHANNEL 30V - 0.009 Ω - 60A - D2PAK "SINGLE .
This Power MOSFET is the latest development of STMicroelectronics unique "Single Feature Size™ " strip-based process.

STB60NE03L-12 Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s DC-DC & DC-AC CONVERTER s AUTOMOTIVE ENVIRONMENT s INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID IDM (
* ) P tot Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω

📥 Download Datasheet

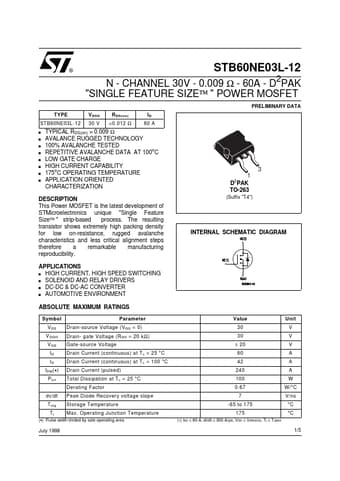

Preview of STB60NE03L-12 PDF
datasheet Preview Page 2 datasheet Preview Page 3
