STB60NF03L, N-CHANNEL Power MOSFET

® STB60NF03L N-CHANNEL 30V - 0.008 Ω - 60A D2PAK STripFET™ POWER MOSFET PRELIMINARY DATA T YPE STB60NF03L s s V DSS 30 V R DS(on) < 0.01 Ω ID 60 .
This Power Mosfet is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

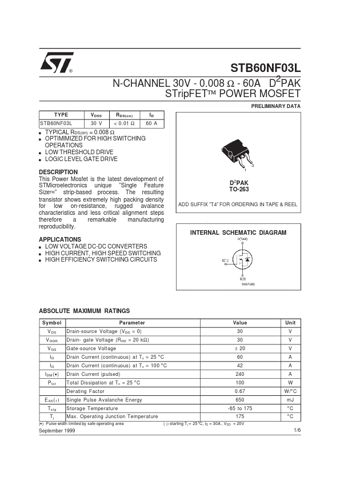

datasheet Preview Page 1 from Datasheet4u.com

STB60NF03L_STMicroelectronics.pdf

STB60NF03L Datasheet Preview — Preview of STB60NF03L PDF

Datasheet Details

Part number:

STB60NF03L

Manufacturer:

STMicroelectronics ↗

File Size:

48.34 KB

Description:

N-CHANNEL Power MOSFET

Applications

* s LOW VOLTAGE DC-DC CONVERTERS s HIGH CURRENT, HIGH SPEED SWITCHING s HIGH EFFICIENCY SWITCHING CIRCUITS D2PAK TO-263 ADD SUFFIX ”T4” FOR ORDERING IN TAPE & REEL INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot E AS ( 1 ) Ts tg Tj Parameter
