STB60NF06 - N-CHANNEL Power MOSFET

STB60NF06 Description

N-CHANNEL 60V - 0.014Ω - 60A D2PAK STripFET™ POWER MOSFET TYPE STB60NF06 s s s s STB60NF06 VDSS 60V RDS(on) < 0.016 Ω ID 60A s TYPICAL RDS(on) =.
This Power Mosfet series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gat.

STB60NF06 Applications

* s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL s AUTOMOTIVE INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continu

📥 Download Datasheet

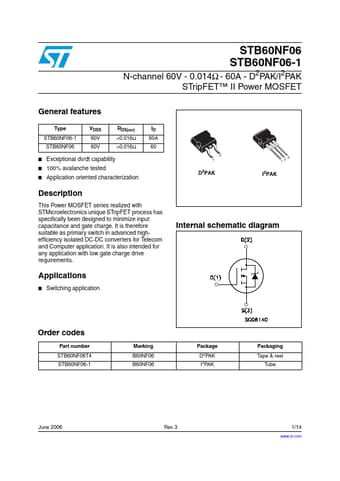

Preview of STB60NF06 PDF
