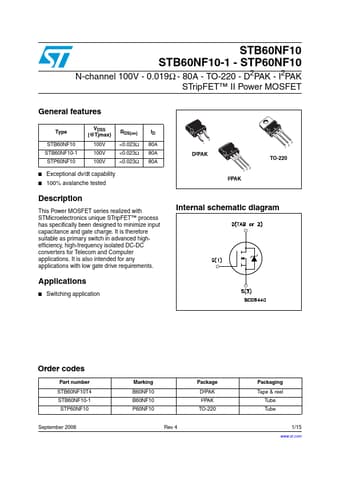

STB60NF10 Datasheet, Mosfet, STMicroelectronics

STB60NF10 Features

• Mosfet Type STB60NF10 STB60NF10-1 STP60NF10 VDSS (@Tjmax) 100V 100V 100V RDS(on) <0.023Ω <0.023Ω <0.023Ω
• Exceptional dv/dt capability
• 100% avalanche tested ID 80A 80A

PDF File Details

Part number:

STB60NF10

Manufacturer:

STMicroelectronics ↗

File Size:

344.83kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input c

STB60NF10 Application

• Applications It is also intended for any applications with low gate drive requirements. Applications
• Switching application 3 1 D²PAK 1
