STB6N60M2 - N-channel Power MOSFET

Datasheet Summary

Description

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology.

Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters.

Features

  • Order code STB6N60M2 STD6N60M2 VDS @ TJmax 650 V RDS(on) max 1.2 Ω ID 4.5 A.
  • Extremely low gate charge.
  • Excellent output capacitance (Coss) profile.
  • 100% avalanche tested.
  • Zener-protected Figure 1. Internal schematic diagram , TAB.

📥 Download Datasheet

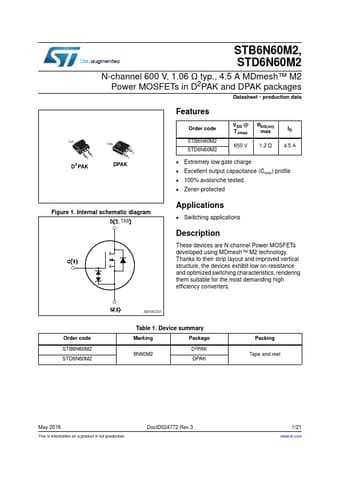

Datasheet preview – STB6N60M2

Datasheet Details

Part number STB6N60M2
Manufacturer STMicroelectronics
File Size 560.01 KB
Description N-channel Power MOSFET
Datasheet download datasheet STB6N60M2 Datasheet
Additional preview pages of the STB6N60M2 datasheet.

📁 Similar Datasheet

  • STB6NA60 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STB6NA80 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STB6NB50 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STB6NB90 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STB6NK60Z - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STB6NK60Z-1 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STB6000 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STB6010 - SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • STB60100C - SCHOTTKY RECTIFIER (SMC Diode)
  • STB6011 - SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STB6N60M2, STD6N60M2 N-channel 600 V, 1.06 Ω typ., 4.5 A MDmesh™ M2 Power MOSFETs in D2PAK and DPAK packages Datasheet - production data TAB 3 1 D2 PAK TAB 3 1 DPAK Features Order code STB6N60M2 STD6N60M2 VDS @ TJmax 650 V RDS(on) max 1.2 Ω ID 4.5 A • Extremely low gate charge • Excellent output capacitance (Coss) profile • 100% avalanche tested • Zener-protected Figure 1. Internal schematic diagram , TAB Applications • Switching applications Description These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters.
