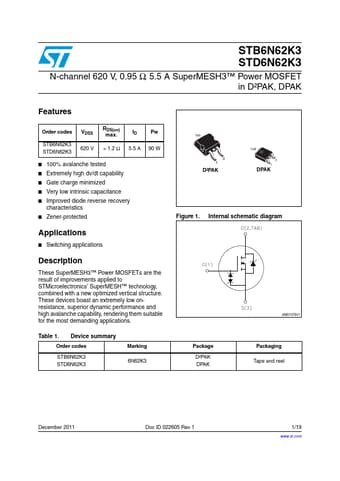

STB6N62K3 Datasheet, Mosfet, STMicroelectronics

STB6N62K3 Features

• Mosfet Order codes STB6N62K3 STD6N62K3 VDSS 620 V RDS(on) max. < 1.2 Ω ID Pw 5.5 A 90 W
• 100% avalanche tested
• Extremely high dv/dt capability
• Gate charge min

PDF File Details

Part number:

STB6N62K3

Manufacturer:

STMicroelectronics ↗

File Size:

544.21kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a

STB6N62K3 Application

• Applications
• Switching applications Description These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectron
