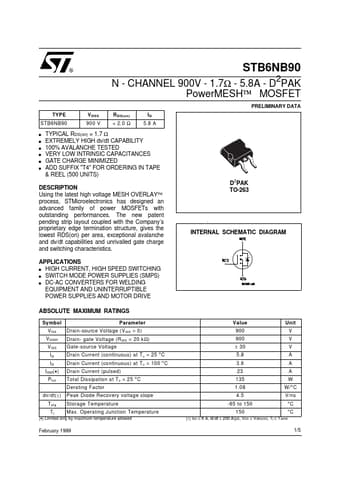

STB6NB90
N - CHANNEL 900V - 1.7Ω - 5.8A - D2PAK PowerMESH™ MOSFET
PRELIMINARY DATA
TYPE STB6NB90
s s s s s s
V DSS 900 V
R DS(on) < 2.0 Ω
ID 5.8 A
TYPICAL RDS(on) = 1.7 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED VERY LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED ADD SUFFIX "T4" FOR ORDERING IN TAPE & REEL (500 UNITS) D2PAK TO-263
DESCRIPTION Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances. The new patent pending strip layout coupled with the Company’s proprietary edge termination structure, gives the lowest RDS(on) per area, exceptional avalanche and dv/dt capabilities and unrivalled gate charge and switching characteristics.
