STD78N75F4 Datasheet - ST Microelectronics

STD78N75F4 Power MOSFETs

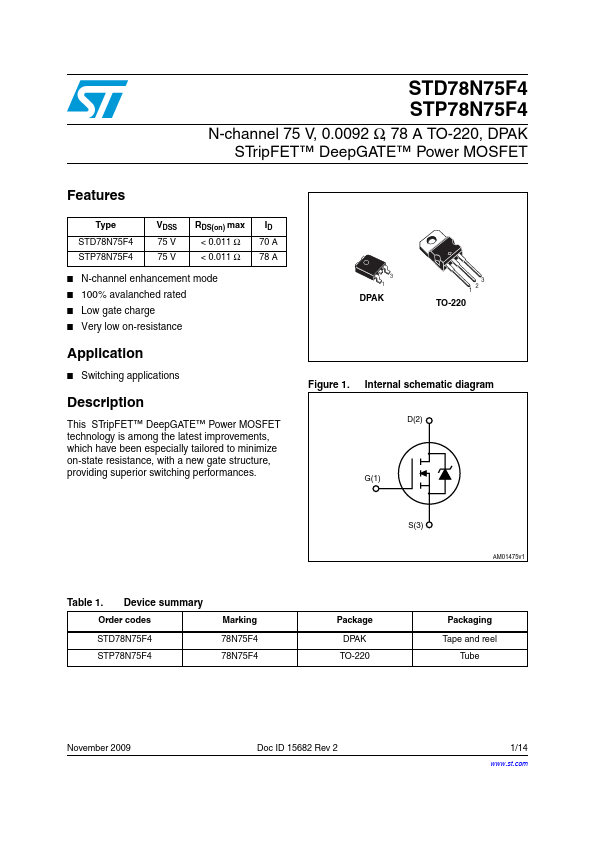

This STripFET™ DeepGATE™ Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state Resistance, with a new gate structure, providing superior switching performances. $ ' 3 !-V Table 1. Device summary Marking 78N75F4 78N75F4 .

STD78N75F4 Features

* Type STD78N75F4 STP78N75F4

* VDSS 75 V 75 V RDS(on) max < 0.011 Ω < 0.011 Ω ID 70 A 78 A 3 1 N-channel enhancement mode 100% avalanched rated Low gate charge Very low on-resistance 3 1 2 DPAK TO-220 Application

* Switching applications Figure 1. Internal schemati

STD78N75F4 Datasheet (552.07 KB)

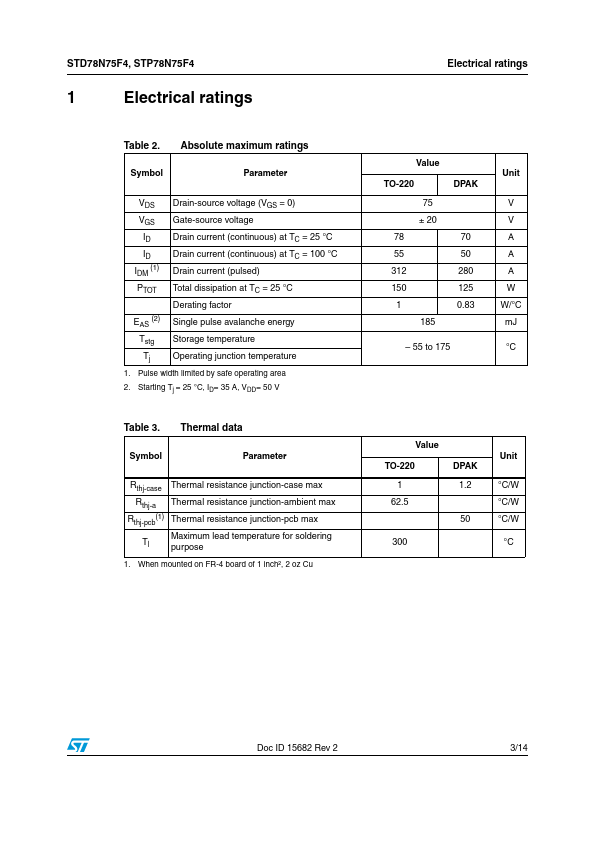

Preview of STD78N75F4 PDF

Datasheet Details

Part number:

STD78N75F4

Manufacturer:

STMicroelectronics ↗

File Size:

552.07 KB

Description:

Power mosfets.
