STI200N6F3 Datasheet, Mosfets, ST Microelectronics

STI200N6F3 Features

  • Mosfets Type STB200N6F3 STI200N6F3 STP200N6F3 VDSS 60 V 60 V 60 V RDS(on) < 3.6 mΩ < 3.9 mΩ < 3.9 mΩ ID 120 A (1) (1) Pw 330 W 330 W 3 1 2 120 A 120 A(1) 330 W TO-220 3 1 3 12 1. Value li

PDF File Details

Part number:

STI200N6F3

Manufacturer:

STMicroelectronics ↗

File Size:

295.42kb

Download:

📄 Datasheet

Description:

Power mosfets. This STripFET™ III Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state

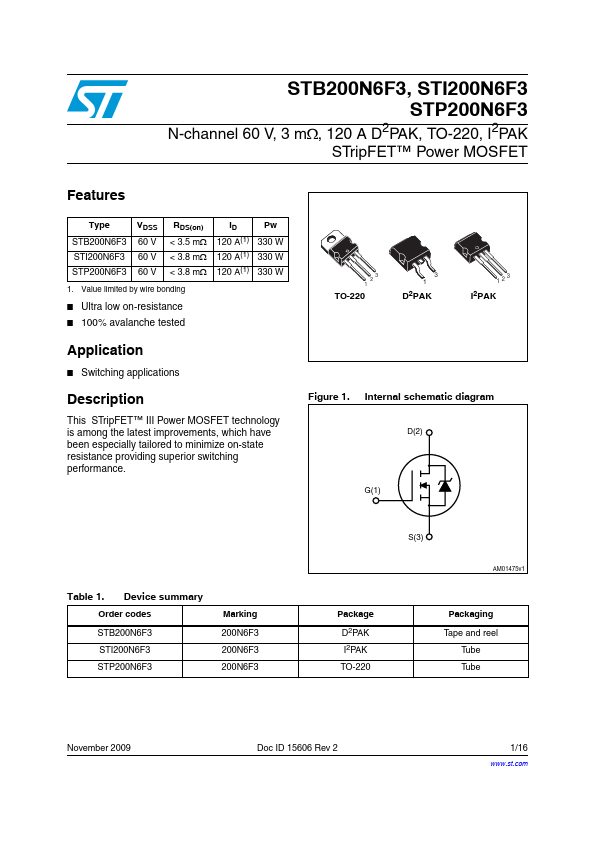

Datasheet Preview: STI200N6F3 📥 Download PDF (295.42kb)

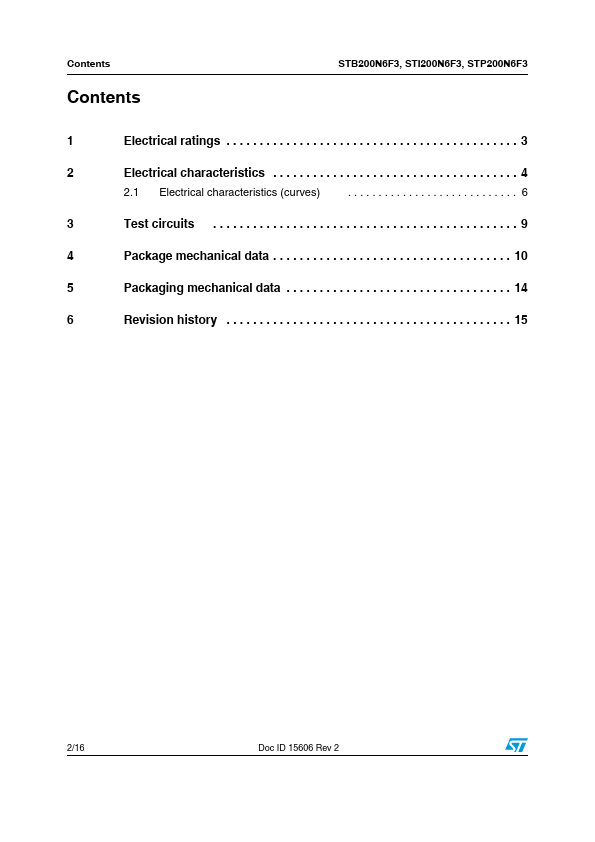

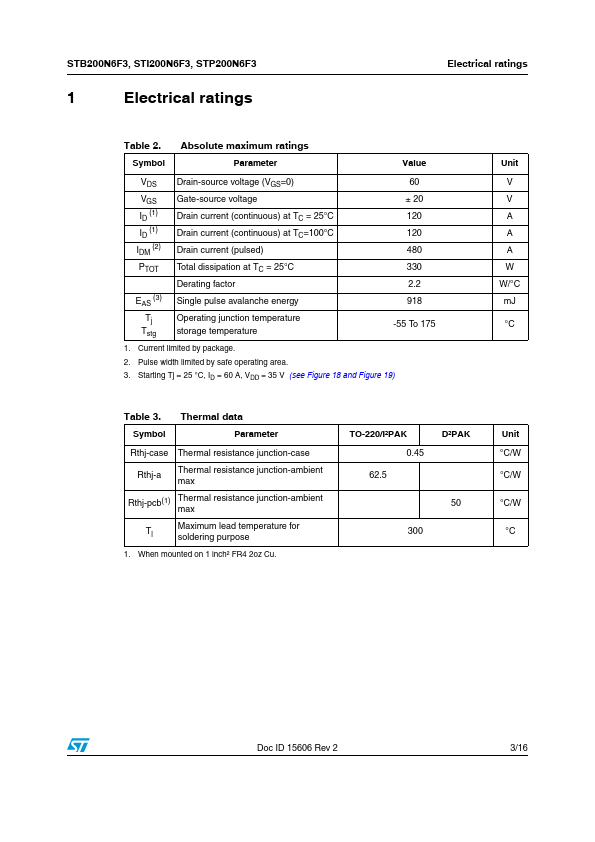

Page 2 of STI200N6F3 Page 3 of STI200N6F3

STI200N6F3 Application

  • Applications Figure 1. Internal schematic diagram Description This STripFET™ III Power MOSFET technology is among the latest improvements, which ha
