STI120NH03L Datasheet, Mosfet, ST Microelectronics

STI120NH03L Features

  • Mosfet Type STB120NH03L STP120NH03L STI120NH03L VDSS 30V 30V 30V RDS(on) <0.0055Ω <0.0055Ω <0.0055Ω ID 60(1) 60(1) 60(1) TO-220 3 1 2 3 1 D2PAK 1. Value limited by wire bonding

PDF File Details

Part number:

STI120NH03L

Manufacturer:

STMicroelectronics ↗

File Size:

546.11kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology. It is ideal in high performance DC-

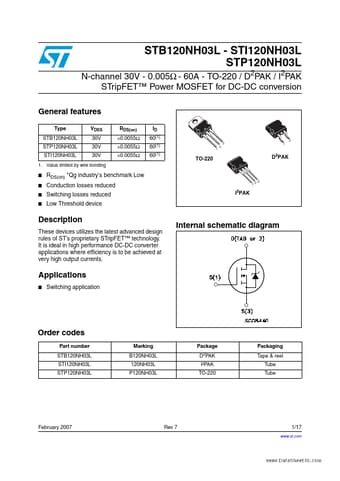

Datasheet Preview: STI120NH03L 📥 Download PDF (546.11kb)
Page 2 of STI120NH03L Page 3 of STI120NH03L

STI120NH03L Application

  • Applications where efficiency is to be achieved at very high output currents. Internal schematic diagram Applications
  • Switching applica
