STI10N62K3

N-channel Power MOSFET

STI10N62K3 Features

* Type VDSS RDS(on) max ID Pw STF10N62K3 STFI10N62K3 STI10N62K3 STP10N62K3 620 V < 0.75 Ω 8.4 A(1) 8.4 A 30 W 125 W 1. Limited by package

* 100% avalanche tested

* Extremely high dv/dt capability

* Gate charge minimized

* Very low intrinsic capacitances

* Improved diode

STI10N62K3 General Description

These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized vertical structure. These devices boast an extremely low onresistance, superior dynamic performance and high avalanche capability, rendering them suitab.

STI10N62K3 Datasheet (484.98 KB)

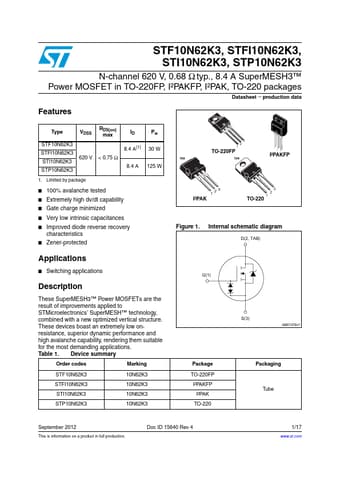

Preview of STI10N62K3 PDF

Datasheet Details

Part number:

STI10N62K3

Manufacturer:

STMicroelectronics ↗

File Size:

484.98 KB

Description:

N-channel power mosfet.
STF10N62K3, STFI10N62K3, STI10N62K3, STP10N62K3 N-channel 620 V, 0.68 Ω typ., 8.4 A SuperMESH3™ Power MOSFET in TO-220FP, I²PAKFP, I²PAK, TO-220 packa.
