STI12NM50N

N-channel Power MOSFET

STMicroelectronics

STI12NM50N Features

* Type VDSS (@Tjmax) RDS(on) max ID STB12NM50N t(s)STD12NM50N cSTI12NM50N uSTF12NM50N rodSTP12NM50N 550 V 550 V 550 V 550 V 550 V 0.38 Ω 0.38 Ω 0.38 Ω 0.38 Ω 0.38 Ω 11 A 11 A 11 A 11 A (1) 11 A P

* 100% avalanche tested te

* Low input capacitance and gate charge le

* Low gate input r

STI12NM50N General Description

ucThis series of devices is realized with the second dgeneration of MDmesh™ technology. This rorevolutionary Power MOSFET associates a new Pvertical structure to the company’s strip layout to teyield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most Obso.

STI12NM50N Datasheet (559.47 KB)

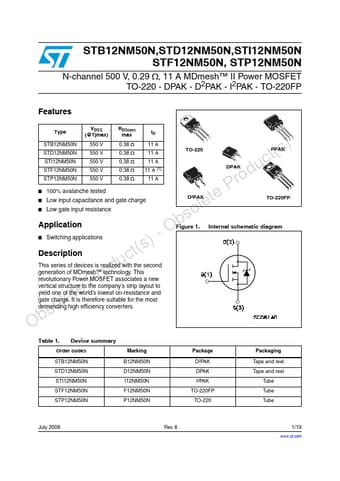

STI12NM50N Datasheet Preview — Preview of STI12NM50N PDF

Datasheet Details

Part number:

STI12NM50N

Manufacturer:

STMicroelectronics ↗

File Size:

559.47 KB

Description:

N-channel power mosfet.
STB12NM50N,STD12NM50N,STI12NM50N STF12NM50N, STP12NM50N N-channel 500 V, 0.29 Ω, 11 A MDmesh™ II Power MOSFET TO-220 - DPAK - D2PAK - I2PAK - TO-220FP.
