STI21NM60ND

N-channel MOSFET

STI21NM60ND Features

* Type www.DataSheet4U.com VDSS @ TJmax 650 V 650 V 650 V 650 V 650 V RDS(on) max < 0.22 Ω < 0.22 Ω < 0.22 Ω < 0.22 Ω < 0.22 Ω ID 3 3 1 2 3 1 2 1 STB21NM60ND STI21NM60ND STF21NM60ND STP21NM60ND STW21NM60ND 17 A 17 A 17 A(1) 17 A 17 A TO-220 D2PAK TO-220FP 1. Limited only by maximum tempera

STI21NM60ND General Description

The FDmesh™ II series belongs to the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company's strip layout and associates all advantages of reduced onresistance and fast switching with an intrinsic fastrecovery body diode.It is the.

STI21NM60ND Datasheet (586.25 KB)

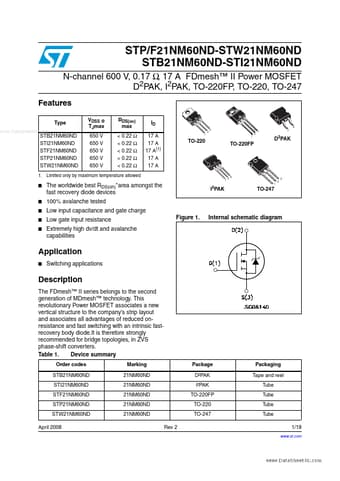

Preview of STI21NM60ND PDF

Datasheet Details

Part number:

STI21NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

586.25 KB

Description:

N-channel mosfet.
STP/F21NM60ND-STW21NM60ND STB21NM60ND-STI21NM60ND N-channel 600 V, 0.17 Ω , 17 A FDmesh™ II Power MOSFET 2 D PAK, I2PAK, TO-220FP, TO-220, TO-247 Feat.
