STI26NM60N - N-Channel MOSFET

INCHANGE

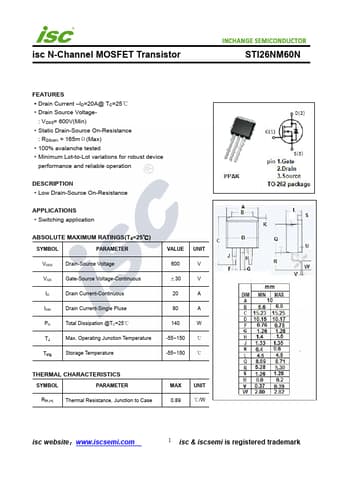

STI26NM60N Datasheet Preview — Preview of STI26NM60N PDF

Datasheet Details

Part number	STI26NM60N
Manufacturer	INCHANGE
File Size	309.67 KB
Description	N-Channel MOSFET
Datasheet	STI26NM60N-INCHANGE.pdf

STI26NM60N Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 600 V ±30 V 20 A 80 A 140 W -55~150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance

Features

Drain Current.
ID=20A@ TC=25℃.
Drain Source Voltage- : VDSS= 600V(Min).
Static Drain-Source On-Resistance : RDS(on) = 165mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
