STMAV335

Wide-Bandwidth Video Switch

STMAV335 Features

* Bi-directional operation

* 3x3 input/3output channels analog video switch )

* Wide bandwidth 300MHz t(s

* Low 4Ω switch resistance between two ports uc

* Excellent RON matching between channels d

* Minimal propagation delay through the switch ro

* Low quiescent curre

STMAV335 General Description

The STMAV335 is a bi-directional triple (3 channel) Single Pole/Triple Throw (SP3T) highspeed, low-power CMOS TTL-compatible analog video switch designed for advanced video applications which demand superior image quality. The low ON Resistance (RON) of the switch allows inputs to be connected to ou.

STMAV335 Datasheet (1.09 MB)

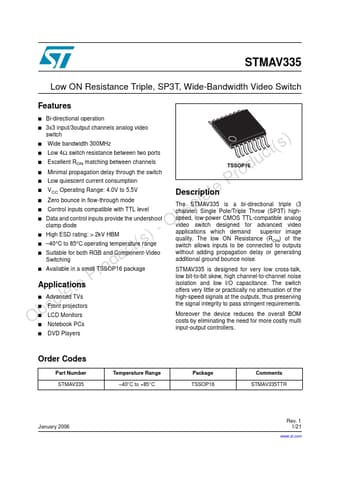

Preview of STMAV335 PDF

Datasheet Details

Part number:

STMAV335

Manufacturer:

STMicroelectronics ↗

File Size:

1.09 MB

Description:

Wide-bandwidth video switch.
